Roll-In Freezer

Model # | Description |
---|---|
RIF-30-SS-1S | 30" Wide, One Door |
RIF-375-SS-1S | 37.5" Wide, One Extra Wide Door |
RIF-60-SS-2S | 60" Wide, Two Doors |
Options | Model # Modification |
---|---|
Roll-Thru | Change "RI" to "RT" |
Remote | Add "-X" suffix to model number |

- Stainless steel front and sides
- Stainless steel interior
- Heavy-gauge, reinforced stainless steel floor
- Standard width models for end-loading racks
- Extra-wide models for side-loading racks and dollies
- Self-closing door hinges with stay-open feature at 120 degrees
- Full-length recessed UnigripTM door handle with security heavy-duty built-in cylinder lock
- Automatic interior light (switch concealed in door hinge)
- Stainless steel entrance ramps (removable)
- Stainless steel cart guides and bumpers
- Condensate heaters around door openings
- Three hinges per door
- Snap-in magnetic door gaskets
- Expansion valve refrigeration system
- Top-mounted compressor
- Digital temperature control
- R-404a refrigerant for superior temperature recovery and pulldown
- Condensate evaporator
- Impact-resistant PVC breaker strip
- Automatic defrost
- 5 year compressor, 5 year parts, 1 year labor warranty
(standard door hinging: Single door units hinged on left; Two door units, left door hinged on left, right door hinged on right; Three door units, left door hinged on left, center and right doors hinged on right. Other configurations available)

Automatic interior light
- Stainless steel back
- Stainless steel bottom
- Shelving options (in lieu of cart or above cart; please specify)
- Reach-in half doors on rear side of roll-thru models
- Temperature alarm
- Correctional facilities package
- Double-deep configuration
- Custom modifications (please specify)

Easy to set top mounted digital control

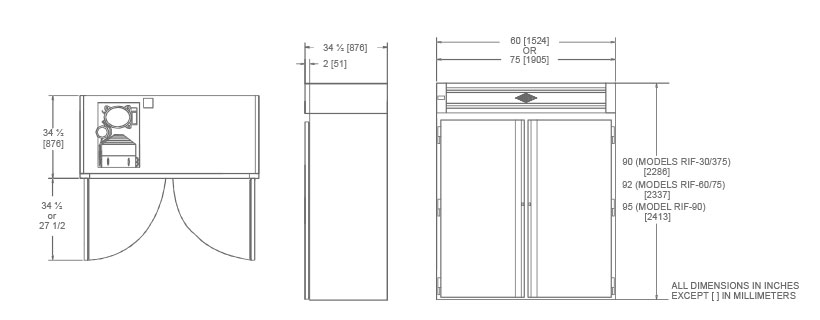

PRODUCT DATA Data is for Std Models; Options may change specifications | RIF-30 | RIF-375 Extra Wide Door | RIF-60 | ||
---|---|---|---|---|---|
Width (overall) | 30" | 37.5" | 60" | ||
Depth (overall) | 34-1/2" | 34-1/2" | 34-1/2" | ||
Height | 90" | 90" | 92" | ||
Depth (door open 90 deg.) | 62" | 69" | 62" | ||
Door opening (net width) | 23-1/4" | 30-3/4" | 23-1/4" | ||
Cart width, maximum | 23" | 30-1/2" | 23" | ||
Cart height, maximum | 66" | 66" | 66" | ||
Cart depth, maximum | 29" | 29" | 29" | ||
Voltage (dedicated circuit required) | 115 | 115 | 115 | ||
Amperage | 11.4 | 13.3 | 24.2 | ||
NEMA plug configuration | 5-15 P | 5-15 P | No Cord | ||
Ship weight (lbs.) | 605 | 740 | 1010 | ||
Ship volume (cu. ft.) | 90 | 110 | 165 | ||
Crated dimensions (87" H) | 33-1/2" x 38-12" | 41" x 38-1/2" | 63-1/2" x 38-1/2" |
Cabinet Exterior
Exterior sides are constructed of heavy gauge stainless steel or aluminum. Exterior back and bottom are constructed of heavy gauge galvanized or optional stainless steel. Top-mount housing and louver rails are stainless steel. Exterior digital thermometer. Cabinet body is 100% CFC free, foamed-in-place polyurethane insulation.
Cabinet Interior
All heavy gauge stainless steel construction with radius corners. Stainless steel cart guides and entrance ramps. Automatic interior light with concealed actuator. Door openings protected by impact-resistant PVC breaker strip.
Doors
All stainless steel construction with magnetic snap-in gasket. Door perimeters have built-in energy saving condensate heaters. In order to prevent damage to door during installation, doors are equipped with self-closing lift-off cam hinges for easy door removal. Doors stay open at 120 degrees for easy access to interior. Standard hinging is left door hinged left, center and right doors hinged right (other configurations available; please specify.)
Refrigeration
Top-mounted fully hermetic compressor with R-404a refrigerant. Thermostatic expansion valve for superior performance and efficiency, faster temperature recovery, shorter running time, and lower energy consumption. Pressure control prevents compressor burnout in case of loss of refrigerant. Easy-to-use digital temp. control enables users to adjust setpoint between -5 to +5 degrees F.
In line with its policy to continually improve its products, Utility Refrigerator reserves the right to change materials and specifications without notice.
